Power Supply Voltage Tester
Power Supply Voltage Tester
Low stock: 4 left
In the event of 'Low Stock', expect additional inventory soon.
Couldn't load pickup availability
Quickly test for output voltage by simply plugging it in.

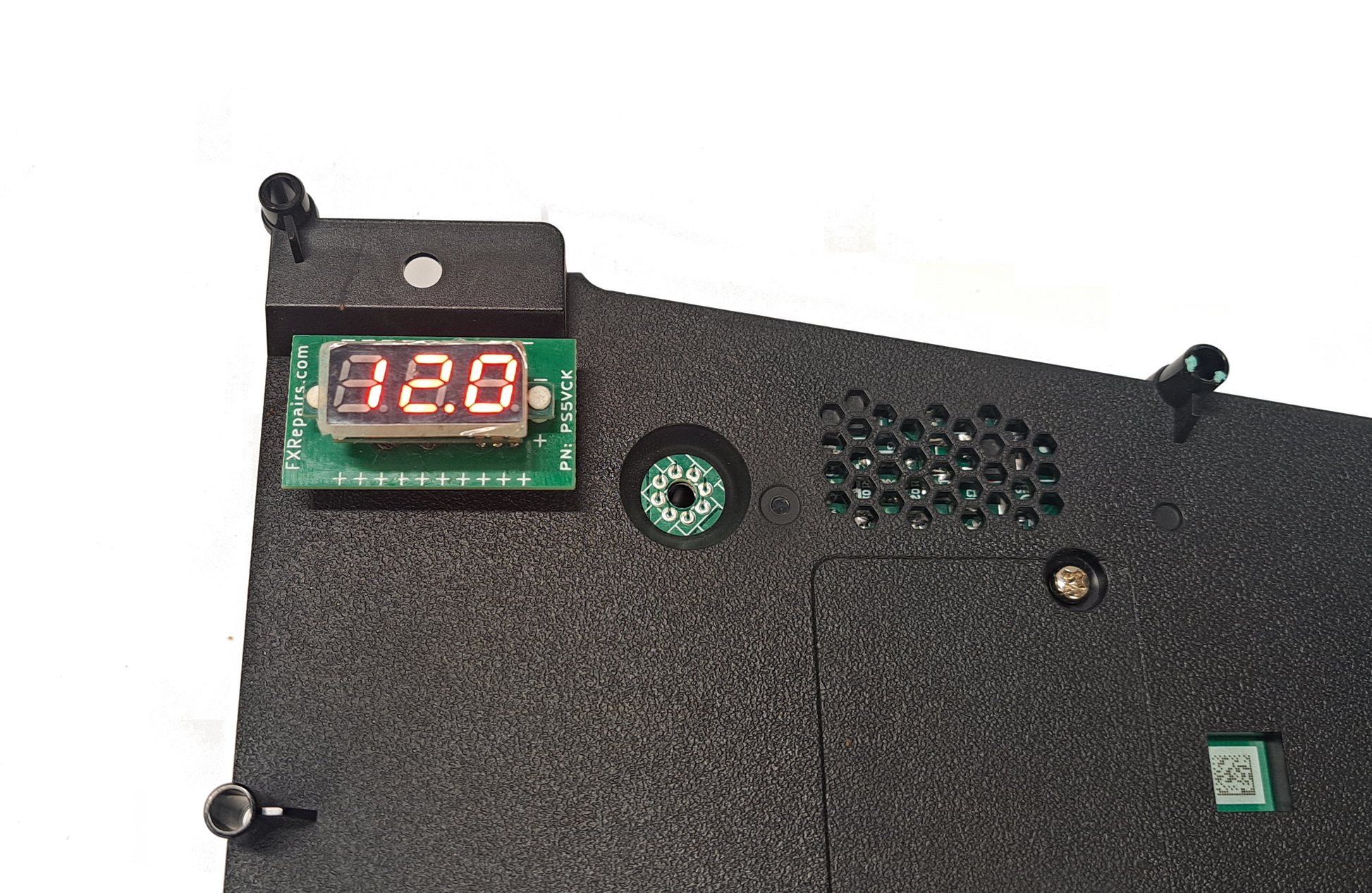

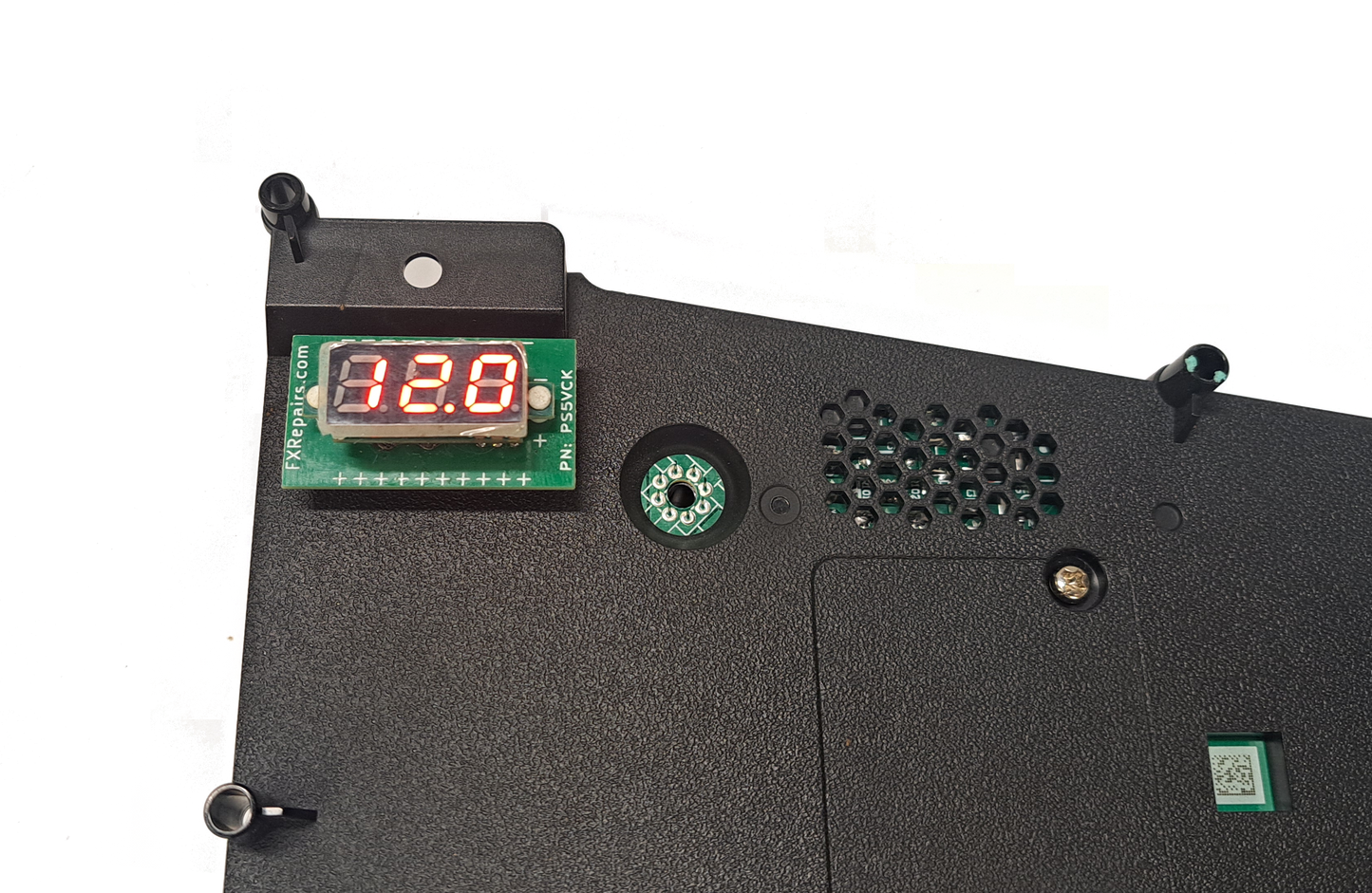

The Power Supply Voltage Tester was designed to check for voltage output on the PS5 power supply, and can be used to test other 12VDC power supplies.
Reverse voltage protection.
Instructions
The PS5 010 & 020 and the PS5 030 adapters simply plug into the fan port.
The PS5 040 adapter will need to mounted with a fan machine screw.
(The gold screw from a Xbox One X Front Power Button Board works great too.)
After the adapter is attached to the PS5, connect the data cable so the black wire connects to GND.
Now plug the USB end into your computer and run your choice of software to read the UART.
NOTE:
Pins may need slight adjustments due to shipping.
ONLY adjust if needed.
