PS5 Fan Port Voltage Tester
PS5 Fan Port Voltage Tester
Regular price
$9.95 USD
Regular price
Sale price
$9.95 USD
Unit price
per
14 in stock
In the event of 'Low Stock', expect additional inventory soon.
Couldn't load pickup availability

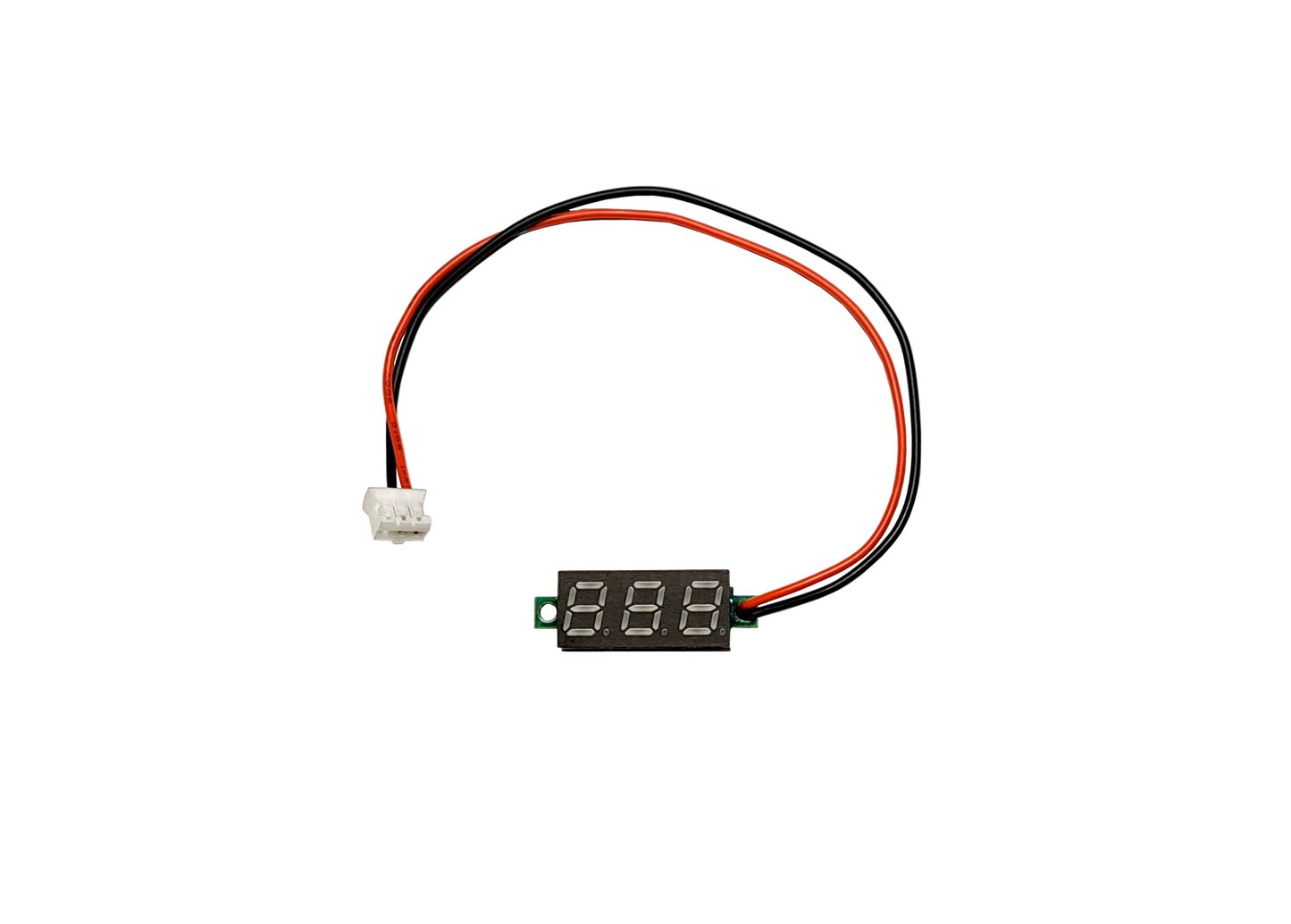

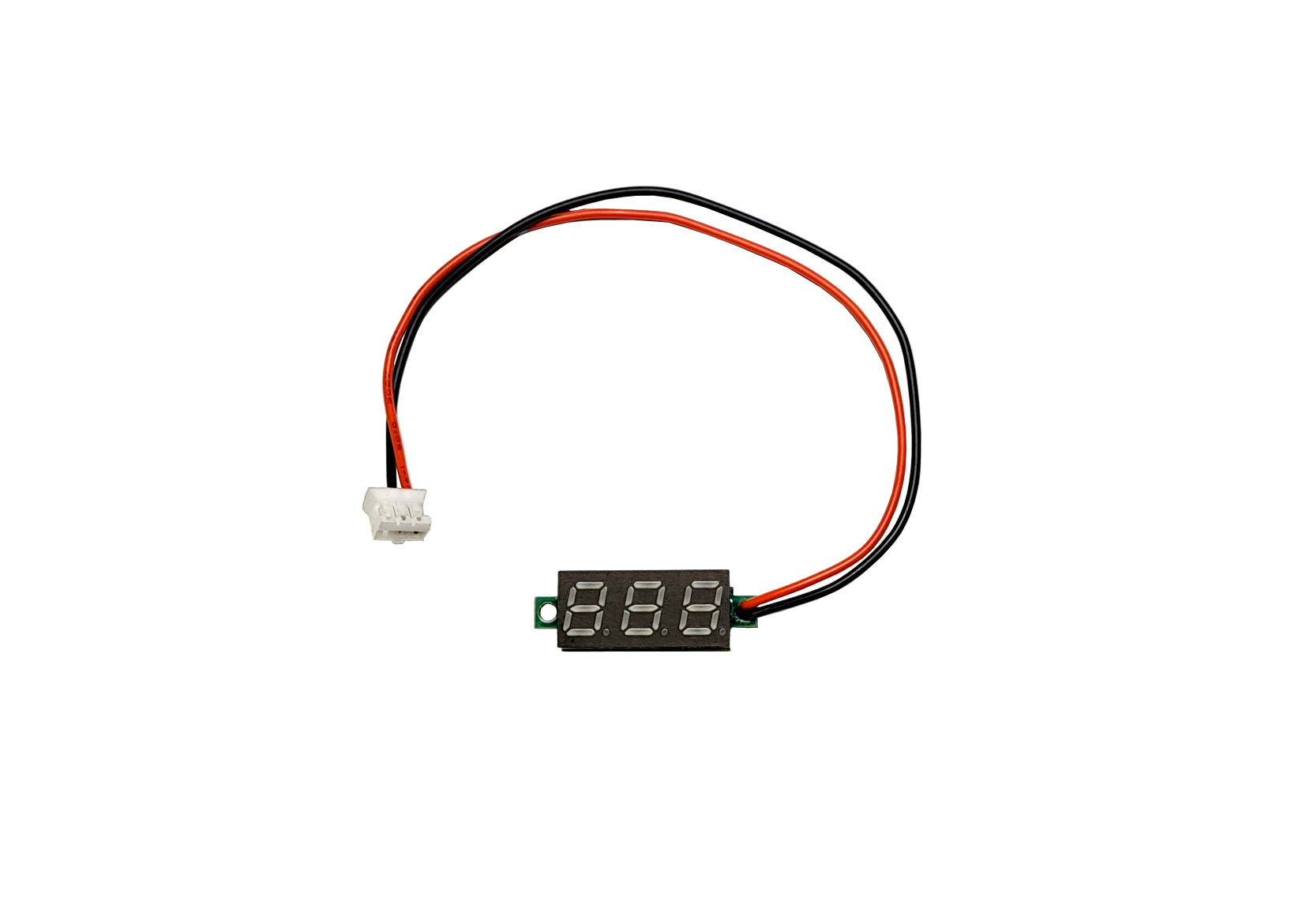

The PS5 Fan Port Voltage Tester allows for fast diagnostic of the PS5 Power Supply without removing a screw.
Instructions

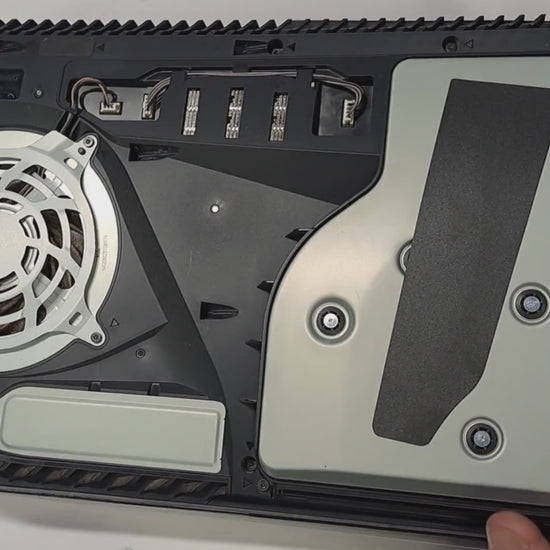

The PS5 010 & 020 and the PS5 030 adapters simply plug into the fan port.
The PS5 040 adapter will need to mounted with a fan machine screw.
(The gold screw from a Xbox One X Front Power Button Board works great too.)
After the adapter is attached to the PS5, connect the data cable so the black wire connects to GND.
Now plug the USB end into your computer and run your choice of software to read the UART.
NOTE:
Pins may need slight adjustments due to shipping.
ONLY adjust if needed.
